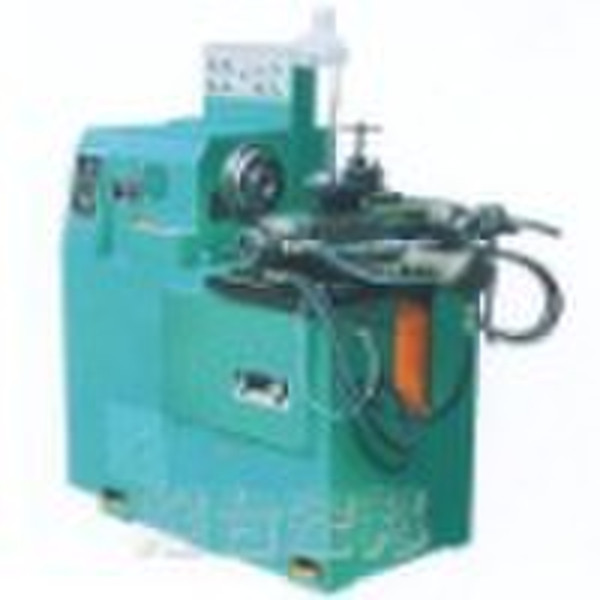

CZ9208 Semiautomatic Hydraulic Lathe

Semiautomatic Hydraulic Lathe C9208 -Used for bearing, Pistons, gears, Cardan Joint, spare parts of car & motorcyclesSemiautomatic Hydraulic Lathe C9208 The lathes are efficient drived by hydraulic pressure.It is applicable to mass production of rings discs,short stepped shafts and conic parts,etc,and to cut inside an outside diamteters,surfaces and groves with finishing an roughing. The lathe is easy to regulate,better rigidity,cutting with great force.Due to adoption of steel tool slideways,it has better wearability and longer useful life. Due to adoption of hydraulic clamping mechanism,it is easy to load clamp workpiece.The cutting processing is decided by programmable controller(PLC).The lathes of models HC7620/1 is fixed with hydraulic tailstocks. We can provide special orders for users,according to every technological requirments of parts to be present. MAIN SPECIFICATIONS C9208 Semiautomatic Hydraulic Lathe C9208/1 Semiautomatic Hydraulic Lathe for Bearing Raceway Max.Working Dia& Length(mm)Φ80,30Φ80,30Max.longitudinal Stroke of Tool-carrier (mm)115550,780,1250,1450Max.longitudinal Work Stroke of Tool-carrier (mm)30 (cross) 0-10 Speed Range(min)550,780,1000,1250Main Motor Power(kw)5.5Working ExampleOverall Dimensions(mm)1700×1250×1320Weight(kg)
